2. Pressure measurement chain

2.1 Transfer function

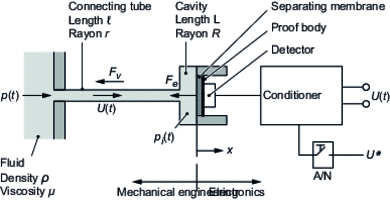

The pressure measurement chain can be broken down into four elements, as shown in figure 11 : the connecting line, the separating diaphragm and/or test body, the sensor and the conditioner.

.Sensor-based pressure measurement chain
