2. Typical constructive arrangements
the electrical diagrams of EDF substations are given in the article .
2.1 Phase layout and equipment

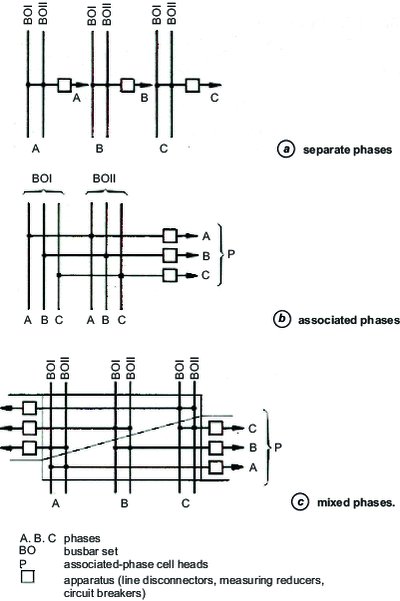

Generally speaking, there are three installation diagrams for multi-busbar substation constructions, which differ in terms of phase arrangement (figure 6 ).
